Roger Technology BI/006 Series - Bionik Brushless Barriers 36V DC - Up to 6 Meters

Roger Technology BI/006 Series - Bionik Brushless Barriers 36V DC - Up to 6 Meters

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
by ROGER TECHNOLOGY
£2,166.47 - £3,854.50
£2,166.47
£2,166.47 - £3,854.50
£2,166.47
Need a quote?

Product Overview:

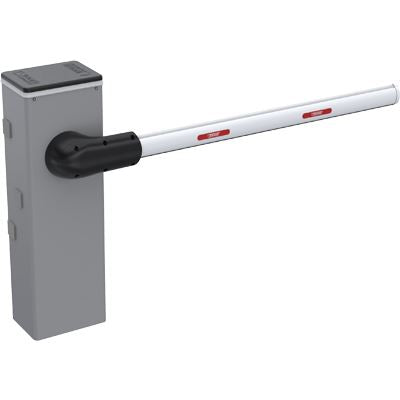

BI/006 and BI/006/IS automatic barriers are brushless, powered by a 36V DC. They are for super intensive use and up to 6 meters in length.

The BI/006/IS version stands out with a housing unit constructed from brushed stainless steel AISI 304, ensuring longevity and an elegant appearance.

Note: Each product variant does not come with a boom, and separate models (mentioned below) are suitable for use. Fixing plates are required for each.

Key Features:

  • Intuitive Operation
  • Adaptable Design: Compatible with BA/90/3, BA/90/4, and BA/90/6 booms (not included).
  • Super Intensive Use: up to 4000 operating cycles daily.
  • Aesthetic Finish: The BI/006 has cabinet painted in RAL9006, while the BI/006/IS has stainless steel AISI 304 finish.

Specifications:

  BI/006 BI/006
Barriers: Up to 6 mt long
Power line supply: 230V AC - 50 Hz
Motor power supply: 36V DC
Electrical absorption: max. 15A
Power rating: 220W
Frequency of use: Super intensive use
Torque: 10 - 300 N m
Operating temperature: - 20 + 55 C°
Protection level: IP54
Reductor Type: Irreversible
Opening time at 90°: 4÷8 sec
Onboard control unit: CTRL Digital Controller 36V DC
Encoder: Digital native encoder + magnetic digital SENSORED, 4096 PPR
Accessories power supply: 24V DC
Colour: Cabinet: painted RAL9006 arabesque grey - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt Cabinet: brushed stainless steel AISI 304 - Head: black arabesque silver painted - Boom support: black arabesque silver painted - Boom: painted RAL9010 matt
Release system: European Key cylinder
Batteries recovery: Available (optional)
BUS synchronization Master/Slave: Yes
Operating cycles per day (opening/closing - 24 hours no stop): 4000 cycles
Maximum dimension product in mm (L x W x H): 380 x 270 x 1237
Product weight packed (Kg): 75,1  73,6

Downloads

Click here for the User manual.

Click here for product datasheet.

For any additional support regarding this product, please fill out our contact form.
