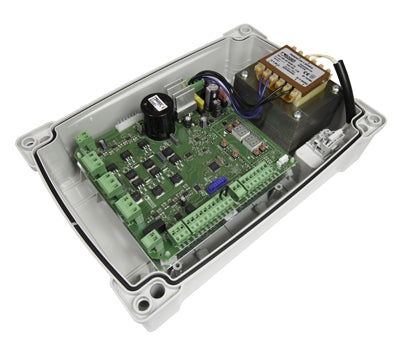

ROGER TECHNOLOGY EDGE1/BOX - Digital Control Board for 2 BRUSHLESS Gate Motors

Product Overview:

Digital control 36V for 2 BRUSHLESS motor, with plastic box.

Key Features:

• 36V
• For 2 motors
• Plastic Housing

Specifications:

• Power line supply: 230V AC - 50 Hz
• Operating temperature range: -10 to +55°C
• Protection level: IP54
• Number of motors activated: 2 BRUSHLESS Motors
• Maximum power per motor: 250W
• Maximum courtesy light charge: 100W (230V AC) / 40W (24V AC/DC)
• Gate open light power: 3W (24V DC)
• Accessories output power: 20W (24V DC)
• Electrical-Lock power: 15W (12V DC)
• Flashlight voltage: 24V DC
• Maximum flashlight charge: 25W
• Battery option: Available
• Dimensions (L x W x H): 330 x 230 x 115 mm
• Product weight (packed): 5.7 kg
• Units per pallet: 50

Other Accessories:

• B71/BCHP/EXT: Kit for emergency batteries charger for Brushless digital controller EDGE1/BOX - B70/1DCHP 36V DC with plug-in card, including 2 recovery batteries 12V DC, 4.5 Ah. Box case included.
• B71/BCHP/BOX: Kit for emergency batteries charger for Brushless digital controller EDGE1/BOX - B70/1DCHP 36V DC. Box case included, batteries not included.
• B74/BCONNECT: WI-FI B-CONNECT Module
• B71/PBX36/BOX/115: Hybrid inverter, “Network Assisted” version, mains voltage: 115V AC.
• B71/PBX36/BOX: Hybrid inverter, “Network Assisted” version
• B71/PBX/BOX: Hybrid inverter, “Full Solar” version

Downloads:

Click here for the User manual.

For further inquiries or additional information regarding this product, please contact us through our inquiry form.
