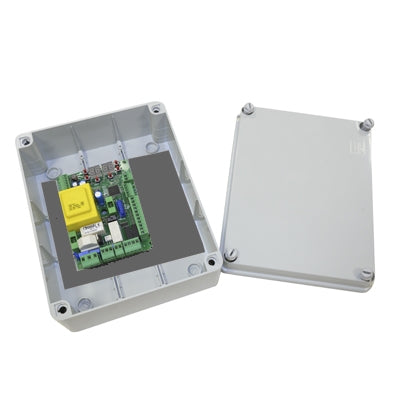

ROGER TECHNOLOGY H70/105AC/BOX - Control Board for 1 Motor with Slow Down

Product Overview:

Control unit for 1 motor 230V AC 50/60Hz with slow down. For universal use, in plastic box.

Key Features:

• For 1 motor
• 230V
• Plastic box included

Specifications:

• Power line supply: 230V AC - 50Hz
• Operating temperature range: -10 to +55° C
• Protection level: IP56
• Number of motors activated: 1 asynchronous monophase
• Maximum power per motor: 600W (230V AC)
• Max courtesy light charge: 100W 230Vac, 25W 24Vac/dc
• Max power for gate open light: 2W 24Vac
• Maximum voltage for accessories: 300mA - 24Vcc
• Max flashing light charge: 440W 230Vac, 25W 24Vac/dc
• Product dimensions (L x W x H): 200mm x 255mm x 99mm
• Product weight (packed): 2 kg
• Units per pallet: 50

Downloads:

Click here for the product datasheet.

For further inquiries or additional information regarding this product, please contact us through our inquiry form.
