ROGER TECHNOLOGY KIT H70/21 230V - Dual Motor Gate Control Kit

Product Overview:

Key Features:

• For 2 motors

Specifications:

• Power Line Supply: 230V AC - 50Hz.
• Operating Temperature: -10°C to +55°C.
• Protection Level: IP54.
• Number of Motors Activated: 2 asynchronous monophase.
• Maximum Power per Motor: 600W 230Vac.
• Maximum Courtesy Light Charge: 100W (12-230V ac/dc).
• Maximum Power for Gate Open Light: 2W 24Vac.
• Maximum Voltage for Accessories Output: 350mA 24Vac (500mA 24Vcc).
• Maximum Flashing Light Charge: 40W (12-230V ac/dc).
• Maximum Dimensions (L x W x H): 228mm x 307mm x 118mm.
• Product Weight Packed: 2.4 kg.

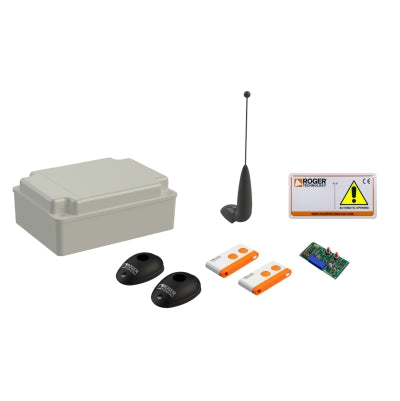

What's in the box:

• H70/200/AC/Box Control Unit: A state-of-the-art control unit specifically designed for dual motor setups.
• H93/RX22A/1 Plug-in Radio Receiver: Assures consistent signal reception operating at a frequency of 433.92 mhz with two channels.
• E80/TX52R/2 Transmitters (x2): Provides the luxury of remote operability, ensuring convenience.
• R90/F2ES Photocells: Synchronised external photocells, acting as a safety mechanism, ensuring error-free motor movements.
• R91/AN1/LR1 Wall Antenna: Guarantees a stable and robust signal connection for optimal performance.

Downloads

Click here to see the product data sheet

For further inquiries or additional information regarding this product, please contact us through our inquiry form.
