Product Overview

The ITS-AX1 is an advanced 79GHz millimeter wave radar proximity sensor designed for vehicle detection and presence monitoring in barrier gate systems. This wireless detection sensor provides automated control and safety features for boom barrier gates through intelligent vehicle sensing and barrier controller integration.

Key Features

Advanced 79GHz millimeter wave radar technology for precise vehicle detection and tracking
Versatile operating voltage range of 9-24V DC with typical 12V/1A operation
Comprehensive detection range with horizontal width of ±0.5~±1.5m (configurable) and vertical length of 1-6m
Robust environmental protection with IP66 rating for all-weather operation
Dual interface support with RS485 and Bluetooth connectivity for easy configuration and updates
Compact and lightweight design measuring 107.9*73.6*17.2mm and weighing only 137g
Wide operating temperature range from -40°C to +85°C
Low power consumption under 2.8W for efficient operation

Technical Specifications

System Performance
- Working Voltage: 9~24V DC (Typical value 12V/1A)
- Power Consumption: < 2.8W
- Operating Frequency: 79GHz
- Protection Rating: IP66
Physical Specifications
- Dimensions: 107.9*73.6*17.2mm
- Weight: 137g
- Detection Range: Horizontal ±0.5~±1.5m, Vertical 1~6m

Key Advantages

Universal Ground Compatibility: Performs reliably on various surfaces including sand, stone, and snow-covered ground
All-Weather Operation: Features advanced algorithms for automatic weather condition adaptation
Enhanced Detection Stability: Utilizes focused wave technology with narrow antenna pitch angle (±15° to ±9°)
Superior Environmental Protection: High-grade waterproof and dustproof design for reliable operation in harsh conditions
Wireless Configuration: Bluetooth connectivity enables convenient real-time adjustments and monitoring
Simplified Maintenance: Supports one-click debugging and firmware upgrading through both RS485 and Bluetooth interfaces

Applications

The ITS-AX1 is compatible with all types of barrier gates, including:

Advertising Barrier Gates
Fence Barrier Gates
Straight Barrier Gates
Telescopic Barrier Gates

Installation and Setup

Installation of the ITS-AX1 requires no ground modifications or construction work. The sensor connects directly to the barrier gate controller through a simple plug-and-play process. For optimal performance, careful attention should be paid to the installation steps and positioning guidelines provided in the user manual.

Safety Features

When installed as an anti-fall radar system, the ITS-AX1 provides continuous monitoring to ensure the safety of both vehicles and pedestrians beneath the barrier arm. The sensor's rapid response time and precise detection capabilities help prevent accidents and damage during barrier gate operation.

Package Contents

1 x ITS-AX1 Vehicle Detection Sensor
Installation Hardware
User Manual
Quick Start Guide

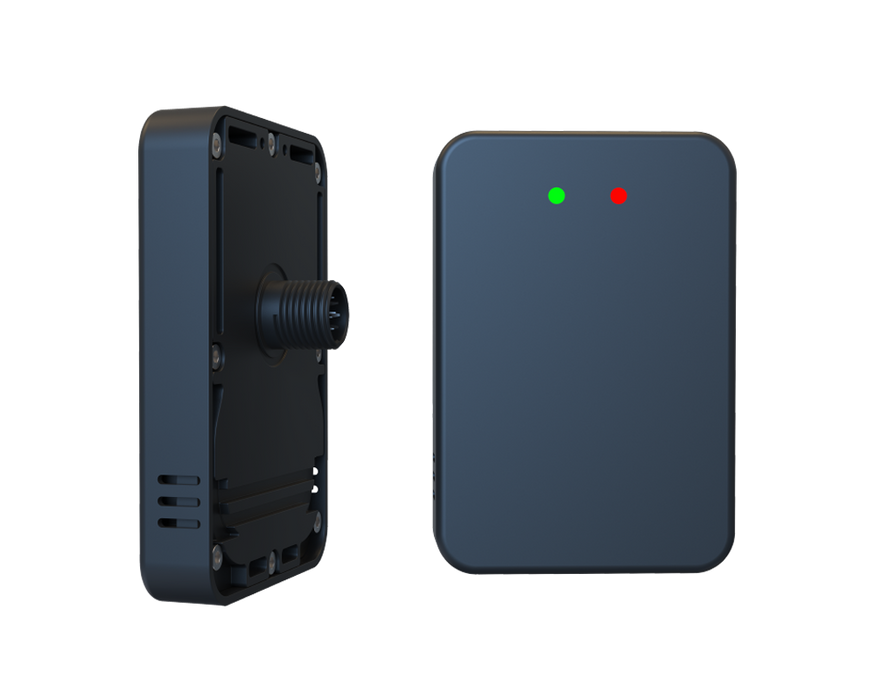

ITS-AX1 | Vehicle Detection Radar
