Roger Technology BH30 - Sliding Gates Kit - 24v

Roger Technology BH30 - Sliding Gates Kit - 24v

Availability:
Out of stock
Availability:
Out of stock
by ROGER TECHNOLOGY
Sold out
£833.43 - £887.48
£833.43
£833.43 - £887.48
£833.43
Need a quote?

Product Overview:

Electromechanical BRUSHLESS kit with 24v motor, low voltage, super intensive use, with native encoder onboard, with built-in digital controller B70 series, with magnetic limit switch.

Ideal for sliding gates up to:

  • 600 kg (KIT BH30/606/HS) - High Speed
  • 1000 kg (KIT BH30/806)

Key Features:

  • Brushless
  • Super intensive use
  • With magnetic limit switch
  • Available in high speed edition (depending on the chosen option)

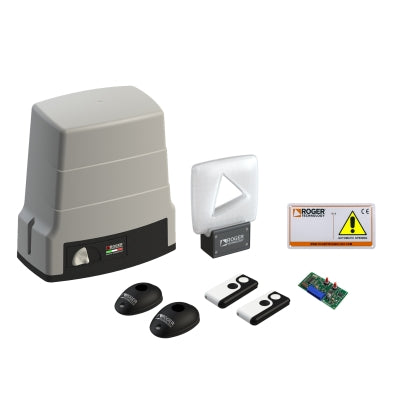

What's in the box:

  • 1x Operator with control panel (model of operator depends on chosen option)
  • 2 x SYNUS Transmitters
  • 1 x PR R90/F4ES Photocells
  • 1 x H93/RX22A/I Plug in Radio Receiver
  • 1 x FIFTHY/24

Specifications:

Specification BH 30/606/HS KIT BH30/806
Max gate weight (kg) 600 1000
Power line supply 230V AC - 50Hz 230V AC - 50Hz
Motor power supply 24V 24V
Power rating (W) 130 200
Frequency of use Intensive use Intensive use
Thrust (N) 50 - 500 50 - 1000
Operating temperature (°C) -20 to +55 -20 to +55
Protection level IP44 IP44
Reductor Type Irreversible Irreversible
Manoeuvre speed (m/min) 26 (0.4) 12 (0.20)
Limit switch Magnetic Magnetic
Onboard control unit B70/1DC B70/1DC
Encoder Digital native encoder + magnetic digital SENSORED, 4096 PPR Digital native encoder + magnetic digital SENSORED, 4096 PPR
Batteries recovery Optional 2 internal battery 12V 1,2AH - Optional 2 external battery 12V 4,5AH Optional 2 internal battery 12V 1,2AH - Optional 2 external battery 12V 4,5AH
Type exit gear Z15/mod 4 Z15/mod 4
Operating cycles per day (opening/closing - 24 hours no stop) 800 1300
Maximum dimension product (L x W x H in mm) 315 x 165,8 x 329 315 x 165,8 x 329
