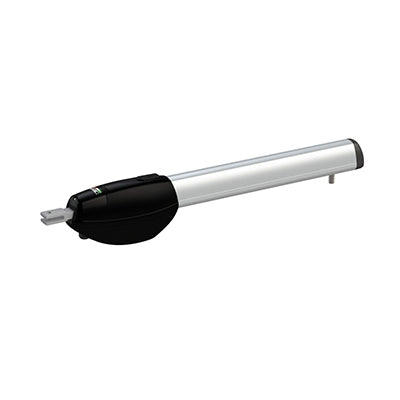

ROGER TECHNOLOGY BE20 Brushless Motor | Up to 4m | 24v or 36v

ROGER TECHNOLOGY BE20 Brushless Motor | Up to 4m | 24v or 36v

Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
by ROGER TECHNOLOGY
£328.70 - £379.83
£328.70
£328.70 - £379.83
£328.70
Need a quote?

Product Overview:

BE20 BRUSHLESS electromechanical underground motor 24v or 36v. Super intensive use, with native encoder onboard, irreversible. With mechanical stopper in opening and closing.

Ideal for swing gates with leaf up to:

  • 2,5 m - BE20/200 (24v) and BE20/200/HS (36v)
  • 4 m - BE20/400 (36v)

Key Features:

  • Motor
  • Super intensive use
  • Swing gates with leaf up to 2,5m or 4,5m (depending on chosen option)
  • HS - High Speed option available
  • 24v or 36V (depending on chosen option)
  • Irreversible

Specifications:

  BE20/200

BE20/200/HS

High Speed

 KIT BE20/400
Power line supply 230V AC - 50Hz 230V AC - 50Hz 230V AC - 50Hz
Motor power supply 24V 36V 36V
Power rating 200W 200W 200W
Frequency of use Intensive use Intensive use Intensive use
Thrust 100 - 2200N 100 - 2200N 100 - 2800N
Operating temperature -20°C to +55°C -20°C to +55°C -20°C to +55°C
Protection level IP44 IP44 IP44
Reductor Type Irreversible Irreversible Irreversible
Manoeuvre speed 1.66 cm/s 3 cm/s 1.66 cm/s
Opening time 15-25 s 10-15 s 17-26 s
Stroke 400 mm 400 mm 550 mm
Limit switch Mechanical stopper in opening and closing Mechanical stopper in opening and closing Mechanical stopper in opening and closing
Recommended digital controllers - - -
Encoder Digital native encoder SENSORLESS 48 PPR Digital native encoder SENSORLESS 48 PPR Digital native encoder SENSORLESS 48 PPR
Operating cycles per day (opening/closing - 24 hours no stop) 800 800 1000
Maximum dimension product in mm (L x W x H) 867 x 105 x 155 867 x 105 x 155 1019 x 105 x 155
