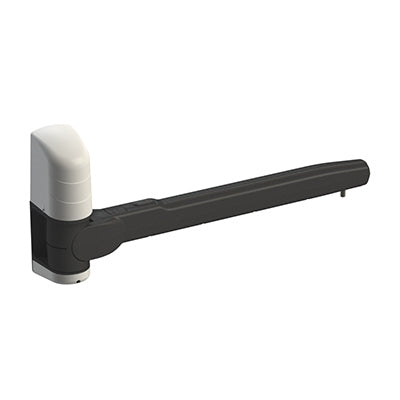

ROGER TECHNOLOGY H20 Brushless Motor | Up to 5m | 230v

ROGER TECHNOLOGY H20 Brushless Motor | Up to 5m | 230v

Availability:
Out of stock
Availability:
Out of stock
by ROGER TECHNOLOGY
£560.22 + VAT
£672.26 inc. VAT
Need a quote?

Product Overview:

Electromechanical actuator 230V AC irreversible ideal for swing gates with leaf up to 3 or 5 m, long or short, fast, with encoder, mechanical stopper in opening and closing.

Operator options:

  • H20/370 - Up to 3m
  • H20/550 - Up to 5m

Key Features:

  • 230V
  • Irreversible
  • Swing gates up to 3 or 5m (depending on chosen option)
  • Encoder
  • Mechanical Stopper

Specifications:

Specification H20/370 H20/550
Power line supply 230V AC - 50Hz 230V AC - 50Hz
Motor power supply 230V AC 230V AC
Power rating (W) 200 200
Frequency of use (%) 40% 40%
Thrust capacity (N) 2500 2500
Operating temperature range (°C) -20 to +55 -20 to +55
Protection level IP43 IP43
Reducer Type Irreversible Irreversible
Maneuver speed (cm/s) 1.66 1.66
Opening time at 90° (seconds) 19 27
Stroke length (mm) 370 550
Motor thermal protection (°C) 150 150
Incorporated capacitor (µF) 10 10
Limit switch type Mechanical stopper for both opening and closing Mechanical stoppers for both opening and closing
Encoder type Optical Optical
Dimensions (L x W x H in mm) 860 x 170 x 425 1040 x 170 x 425



Accessories:

Standard:
  • MC779: Kit 2 mechanical stop for M20 - G20 - H20 series.
  • KT201: Long front hinge plate, to weld.
Other Accessories:
  • R99/C/001: Signboard "Automatic Opening".
  • KT201/R: Screw-welded long front bracket.
  • R99/C/001AL: Signboard "Automatic Opening" Aluminium version.

For further inquiries or additional information regarding this product, please contact us through our inquiry form.
