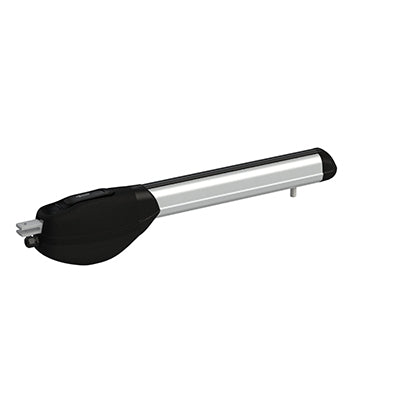

ROGER TECHNOLOGY R20 Motor | Up to 5m | 230v

ROGER TECHNOLOGY R20 Motor | Up to 5m | 230v

Availability:
Out of stock
Availability:
Out of stock
by ROGER TECHNOLOGY
£341.92 + VAT
£410.30 inc. VAT
Need a quote?

Product Overview:

Electromechanical operator 230V AC, irreversible with 1 microswitch.

Ideal for swing gates with leaf up to 2,5 or 3,5m (depending on chosen motor type)

Key Features:

  • For Swing Gates with leaf up to 3,5m
  • 230V
  • Irreversible

Specifications:

Specification R20/300 R20/500
Power line supply 230V AC - 50Hz 230V AC - 50Hz
Motor power supply 230V AC 230V AC
Power rating (W) 200 200
Frequency of use (%) 40 40
Thrust (N) 2500 2500
Operating temperature (°C) -20 to +55 -20 to +55
Protection level IP44 IP43
Reductor Type Irreversible Irreversible
Manoeuvre speed (cm/s) 1.66 1.66
Opening time (s) 19 27
Stroke (mm) 320 520
Motor thermal protection (°C) 150 140
Incorporated condenser (µF) 15 15
Limit switch Microswitch in opening (optional in closing) Microswitch in opening (optional in closing)
Encoder - -
Maximum dimension product (L x W x H in mm) 858.5 x 120 x 165 1088.5 x 120 x 165
Product weight packed (Kg) 9.2 10.7

Accessories:

Standard:

  • KT206: Kit of three hinge plates short to weld.

Other:

  • MC770: Kit optional microswitch in closing with cable for R20 series.
  • R99/C/001: Signboard "Automatic Opening".
  • MC780: Kit of 2 mechanical stops for R20 series.
  • KT202/R: Screw-welded short front bracket.
  • KT204/R: Screw-adjustable short rear bracket.
  • KT206/R: Kit of screw-adjustable short rear bracket and screw-welded short front bracket.
  • R99/C/001AL: Signboard "Automatic Opening" Aluminium version.

For further inquiries or additional information regarding this product, please contact us through our inquiry form.
