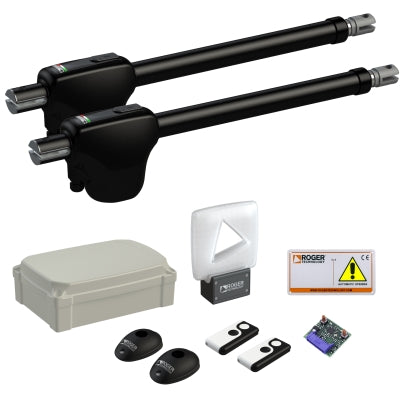

ROGER TECHNOLOGY KIT MONOS4 Brushless Pair

ROGER TECHNOLOGY KIT MONOS4 Brushless Pair

Availability:
Out of stock
Availability:
Out of stock
by ROGER TECHNOLOGY
£837.39 + VAT
£1,004.87 inc. VAT
Need a quote?

Product Overview:

24V - Electromechanical operator pair with telescopic arm, BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 4 m length.

230v - KIT Electromechanical actuator with telescopic arm, 230V AC, irreversible, ideal for swing gates with leaf up to 4 m length.

Key Features:

  • For Swing Gates with leaf up to 4m
  • 24V or 230v
  • Irreversible

Specifications:

24V 230V
Power line supply 230V AC - 50Hz 230V AC - 50Hz
Motor power supply 24V 230V AC
Power rating 200W 200W
Frequency of use Intensive use 30%
Thrust 2200N 2400N
Operating temperature -20°C to +55°C -20°C to +55°C
Protection level IP44 IP44
Reductor Type Irreversible Irreversible
Manoeuvre speed 2.10 cm/s 1.66 cm/s
Opening time 19-35 s 24 s
Stroke 400 mm 400 mm
Limit switch - -
Recommended digital controllers - -
Encoder Digital native encoder SENSORLESS 48 PPR -
Operating cycles per day (opening/closing - 24 hours no stop) 700 -
Maximum dimension product in mm (L x W x H) 1223 x 178 x 111 1223 x 178 x 111

What's in the Box:

24V 230V
  • 2x Operator
  • 1x B70/2ML/BOX
  • 2x SYNUS/2
  • 1x H93/RX20/I
  • 1x R90/F4ES
  • 1x FIFTHY/24
  • 2x Operator
  • 1x H70/200AC/BOX
  • 1x H93/RX20/I
  • 2x T80/TX2
  • 1x R90/F2ES
  • 1x FIFTHY/230

NOTE: Actual product may differ from photo

For further inquiries or additional information regarding this product, please contact us through our inquiry form.
